Dry Mortar Powder Mixing Machine Plant with Sand Cement Packing
Machine
1,Description of Dry Mortar Powder Mixing Machine Plant
Fully automatic dry mortar equipment plays an important role in
modern construction projects with its high efficiency mixing, high
automation, small footprint, low energy consumption and wide
application range. With the continuous advancement of technology
and the increase in market demand, this equipment will show its
unique advantages in more fields and contribute to the sustainable
development of the construction industry.
2.Features of Dry Mortar Powder Mixing Machine Plant
Efficient mixing: The equipment adopts a double-axis gravity-free paddle mixer or
multi-layer ribbon stirring method, the overall movement speed of
the material is fast, the mixing uniformity is high, and there is
no dead angle, ensuring the high quality of the dry mortar.
High degree of automation: The fully automatic dry mortar equipment integrates automatic
batching, mixing, packaging, and stacking, which greatly reduces
manual intervention, improves production efficiency, and reduces
labor costs.
Small area occupation: The equipment adopts a three-dimensional layout design, with a
compact structure, a small footprint, and is easy to install and
move.
Low energy consumption: The equipment focuses on energy saving and consumption reduction
during the design and production process, and adopts advanced
transmission systems and energy-saving materials to reduce
operating costs.
Wide range of applications: The equipment can meet the production needs of dry mortar with
different performance requirements, such as masonry mortar,
plastering mortar, insulation mortar, waterproof mortar and other
types.
3. Configuration of Dry Mortar Powder Mixing Machine Plant
| Model | MG 2000 | MG3000 | MG4000 | MG6000 |
| Discharge capacity (t/batch) | 1-1.5t/batch | 2-2.5t/batch | 3-3.5t/batch | 4-4.54t/batch |
| Mixer cylinder volume(m3) | 2 | 3 | 4 | 6 |
| Mixing time | 3-5min | 3-5min | 3-5min | 3-5min |
| Motor power | 18.5kw | 22kw | 37kw | 37kw |
| Shaft rotate speed | 43r/min | 43r/min | 43r/min | 43r/min |
| Coefficient of variation(CV) | <=5% | <=5% | <=5% | <=5% |
| Paddle blade type | Welding | Welding | Welding | Welding |
| Paddle blade quantity | 2*14=28pcs | 2*14=28pcs | 2*14=28pcs | 2*14=28pcs |
| Overall dis(mm) | 2600*1600*1650 | 3000*1600*1650 | 3000**2200*2000 | 3000*2450*2200 |

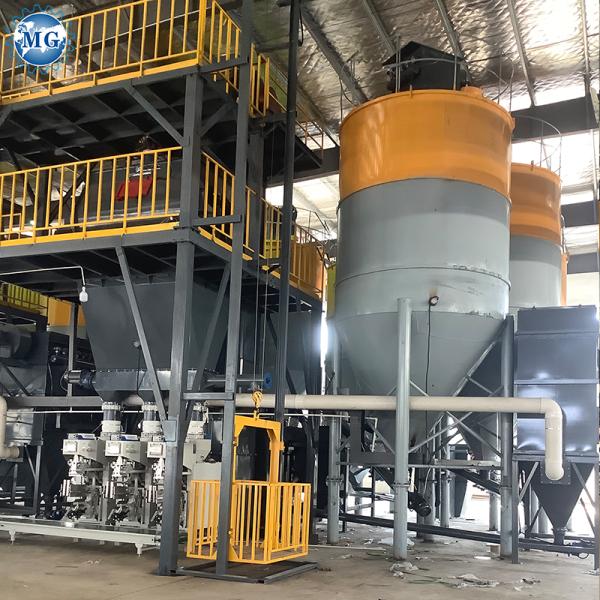

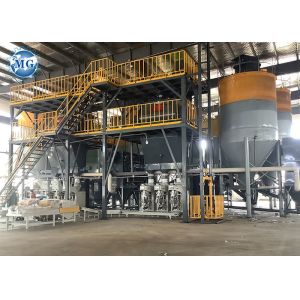

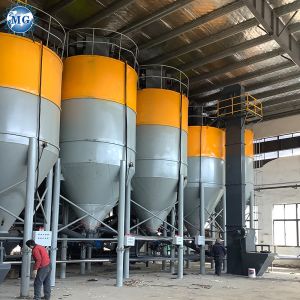

5. Working site of Dry Mortar Mixer Machine
Green environmental protection, energy saving and emission
reduction, our production line pursues high efficiency while not
forgetting to respect and protect the environment. Low noise and
low energy consumption win social praise and market favor for your
company.
"Building high efficiency and quality, starting from simplicity and
excellence - your exclusive dry mortar production line! We are professional manufacturer of dry mortar plant and sand dryer
plant more than 20 years, providing turnkey project from working
site design, foundation drawing, installation and debugging, worker
training, latest formula, chemicals, after-sale and life time
technical support.
Welcome your inquiry and visiting! contact Ms. Zoey Lee: + 86
15617507836
